| Model | Appearance | Layout (Bottom View) |
Dimension(mm) (L x W x H) |
Contact Arrangement |
Contact Ratings | Coil Voltage | Safety Approval | Data Sheet |
|---|---|---|---|---|---|---|---|---|

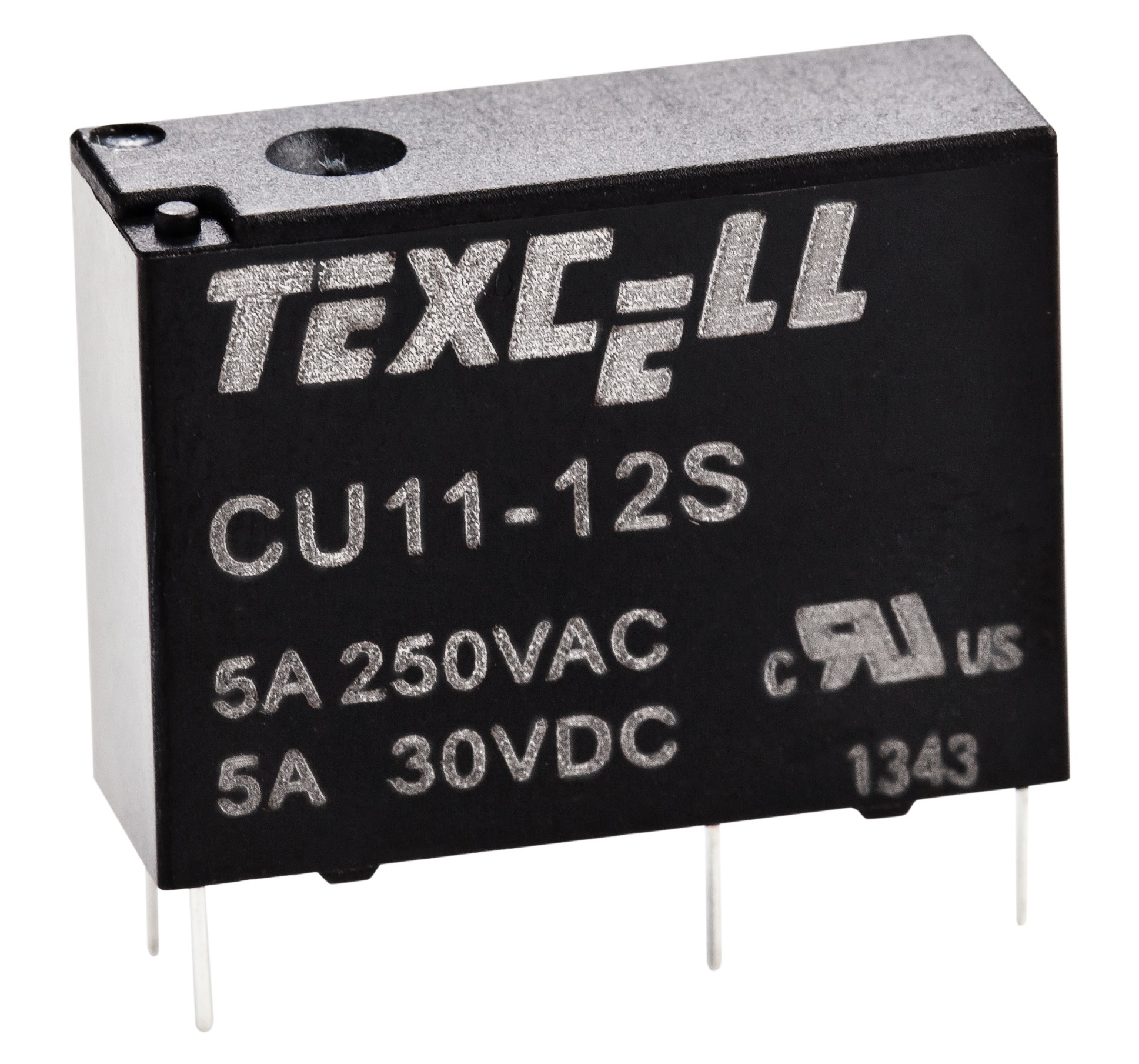

| CU |  |
 |
20.5 x 7.0 x 15.3 23.4 x 7.0 x 15.3 |
1A 1C |
5A 250VAC / 30VDC 10 250VAC |
3~24VDC |  |
 PDF Data sheet |

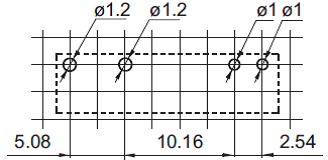

| NA |  |
 |
20.0 x 5.0 x 12.5 | 1A | 5A 250VAC / 30VDC | 5~24VDC |  |
PDF Data sheet |

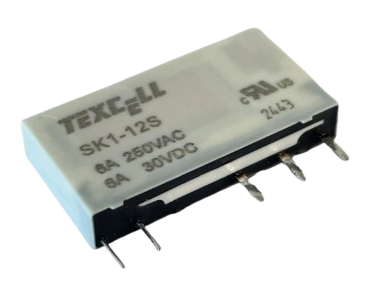

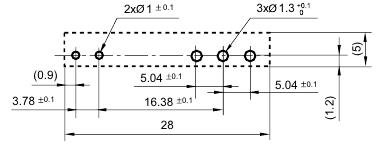

| SK |  |
 |
28 x 5 x 15 | 1A, 1C | 6A 250VAC / 30VDC | 5~60VDC |  |
PDF Data sheet |

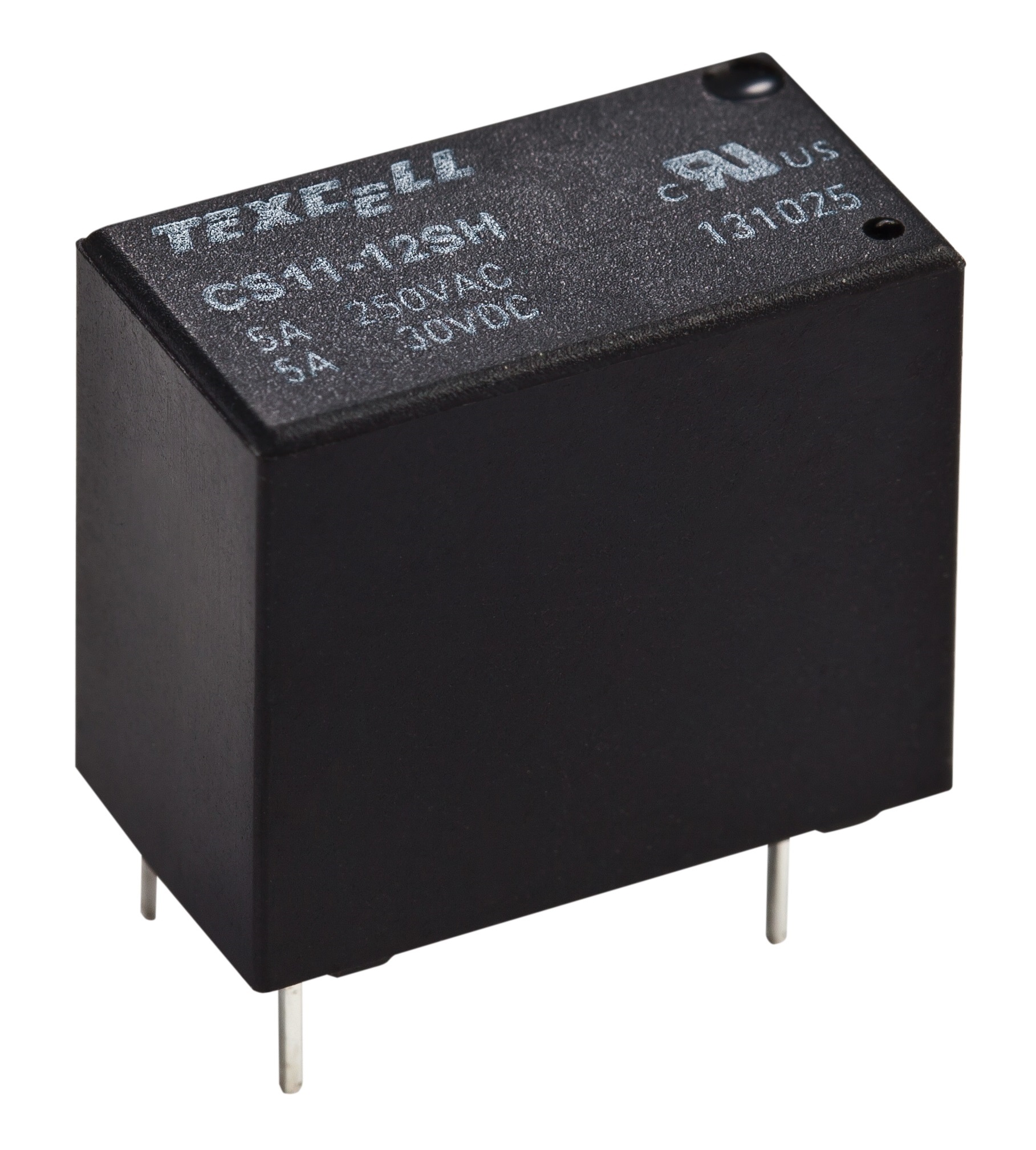

| CS |  |
 |
18.4 x 10.2 x 15.5 | 1A 1C |
10A 250VAC 3A 250VAC / 30VDC |
3~48VDC |  |
PDF Data sheet |
| SS |  |
 |
17.6 x 10.1 x 12.7 18.6 x 10.3 x 13.0 |
1A 1C |
10A 250VAC 5A 250VAC / 30VDC |
3~24VDC |  |
PDF Data sheet |

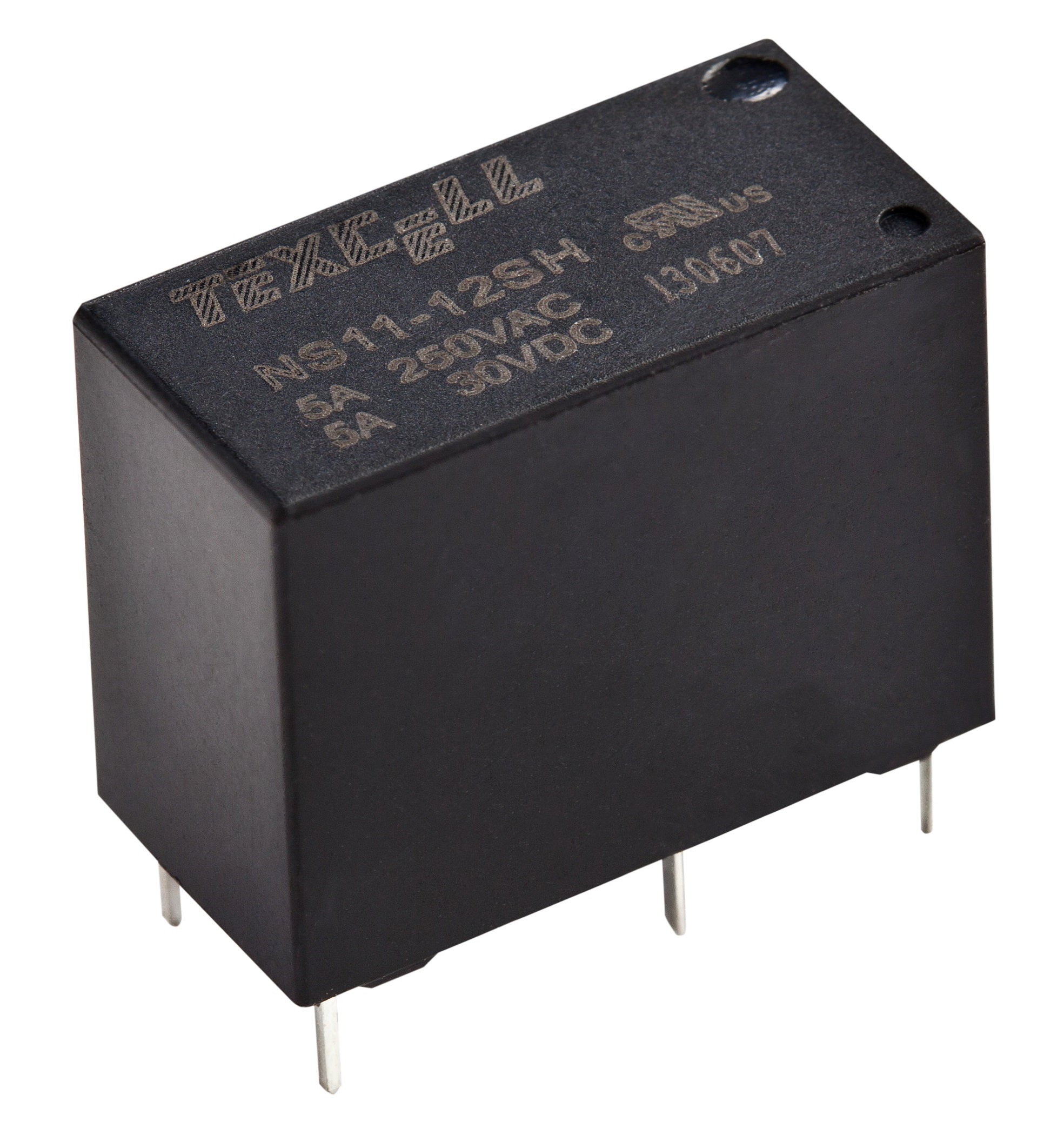

| NS |  |
 |
20.5 x 10.2 x 15.7 | 1A 1C - NO 1C - NC |
5A 250VAC / 30VDC 5A 250VAC / 30VDC 3A 250VAC / 30VDC |
3~48VDC |  |
PDF Data sheet |

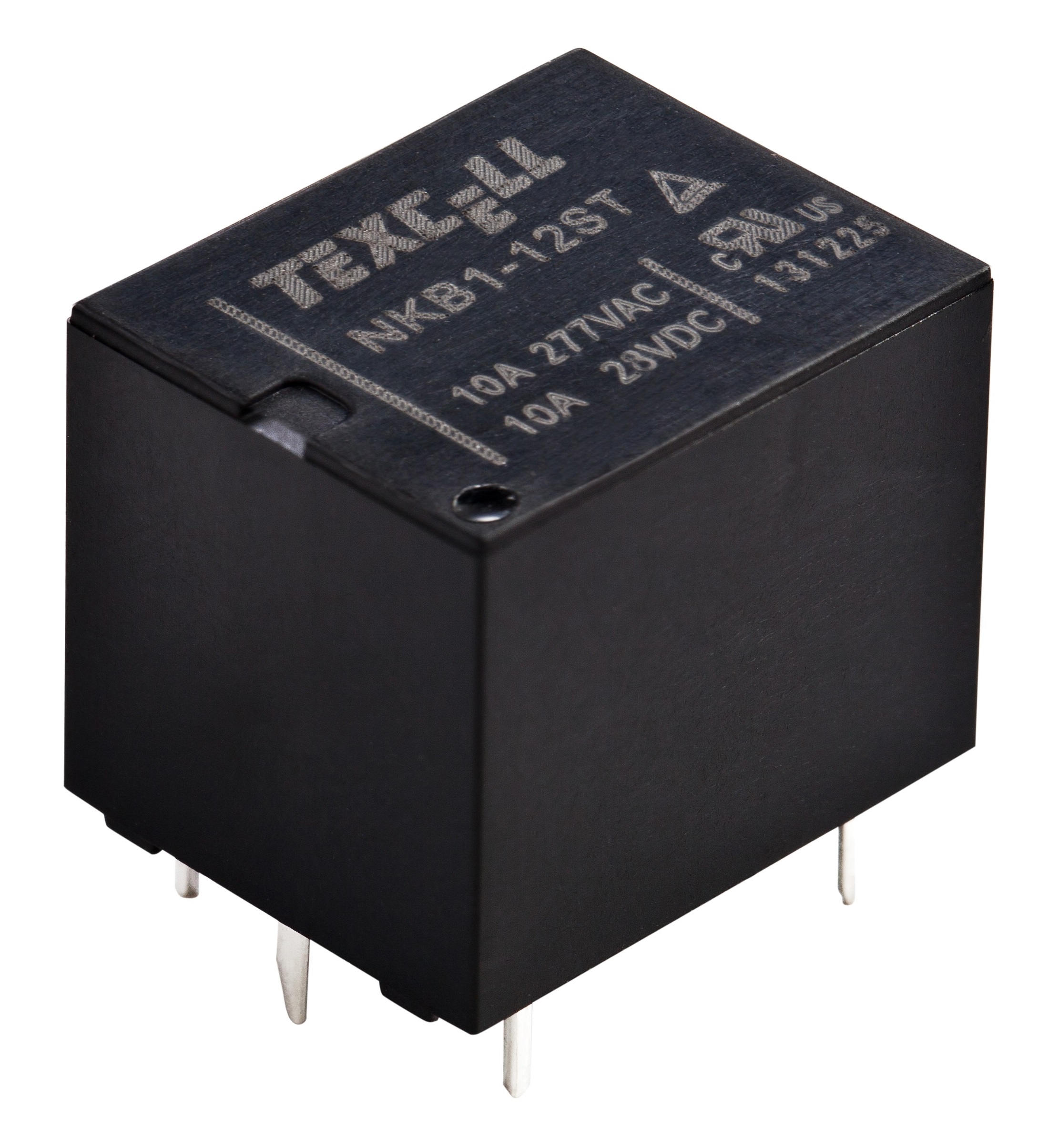

| NKB |  |
 |
19.0 x 15.2 x 15.5 | 1A 1C - NO 1C - NC |
10A 277VAC / 28VDC 10A 277VAC / 28VDC 5A 250VAC |
5~48VDC |  |
PDF Data sheet |

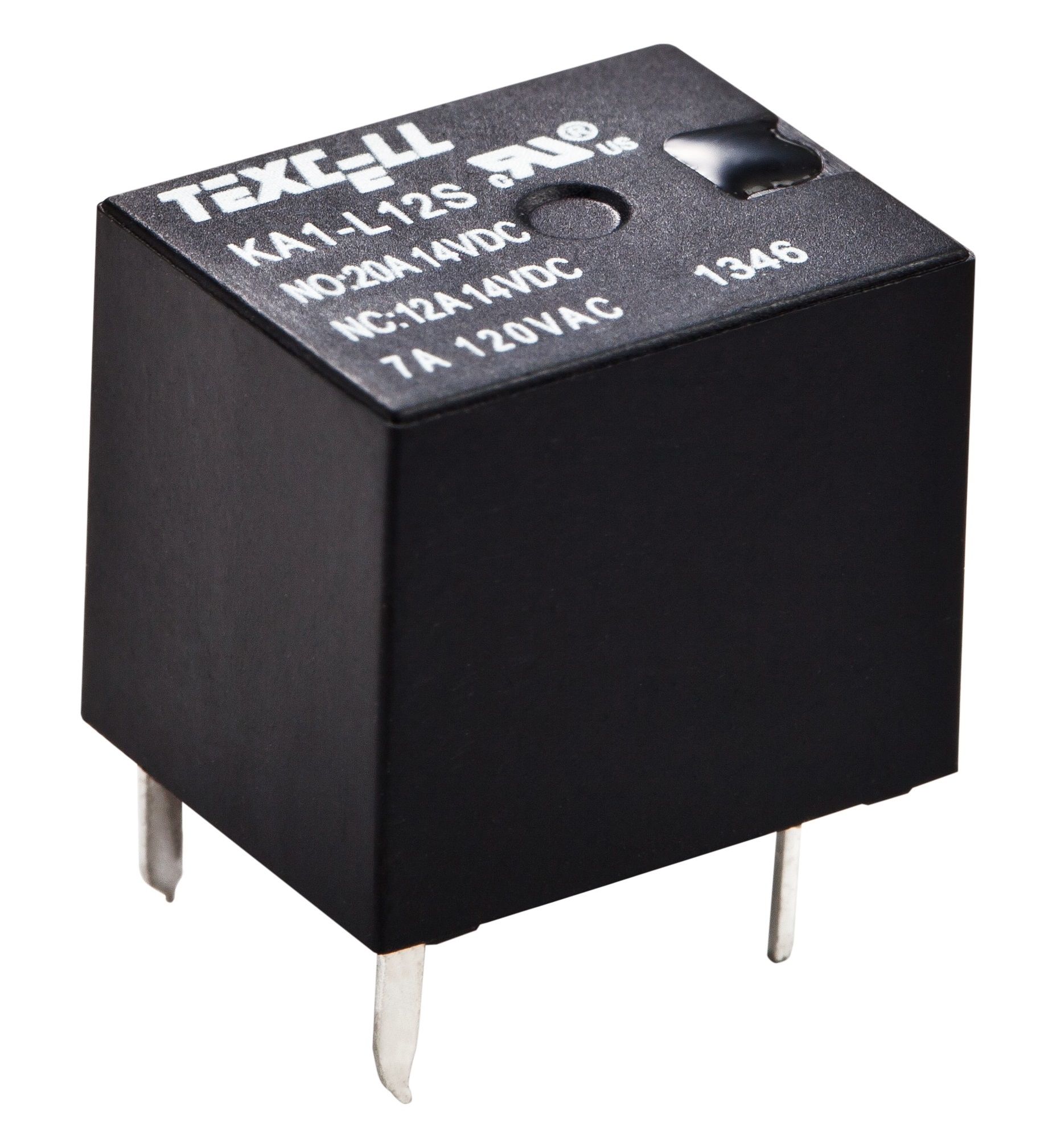

| KA |  |
 |
15.7 x 12.3 x 14.0 | 1A, 1C | NO: 20A 14VDC NC: 12A 14VDC |
6~24VDC |  |
PDF Data sheet |

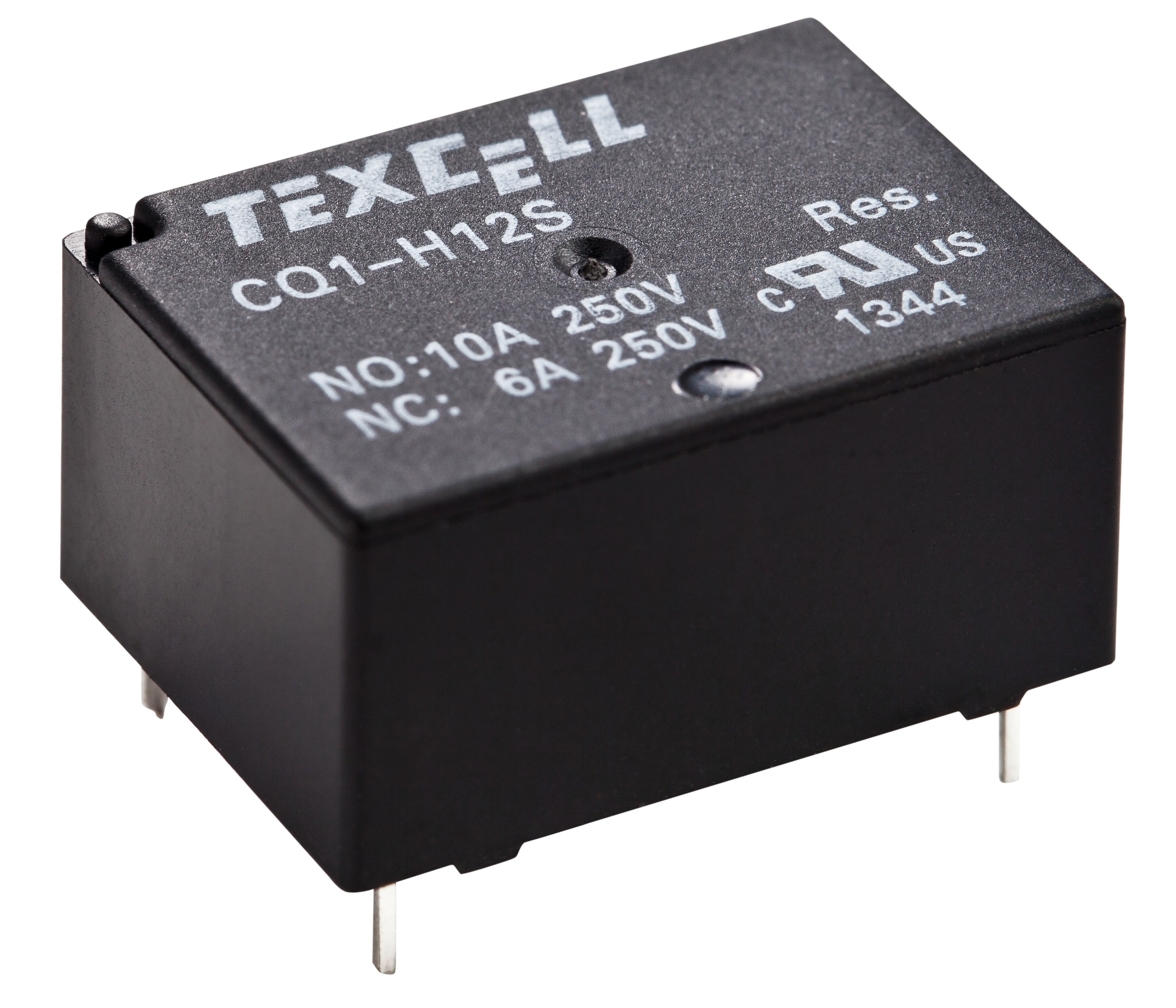

| CQ |  |
 |
22.0 x 16.0 x 10.9 | 1A 1C - NO 1C - NC |
16A 125VAC / 30VDC 10A 250VAC 6A 250VAC |
5~48VDC |  |
PDF Data sheet |

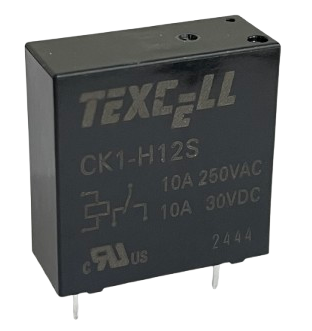

| CK |  |
 |
24.5 x 10.5 x 24.5 | 1A, 1C | 10A 250VAC / 30VDC TV5 125VAC |
5~48VDC |  |
PDF Data sheet |

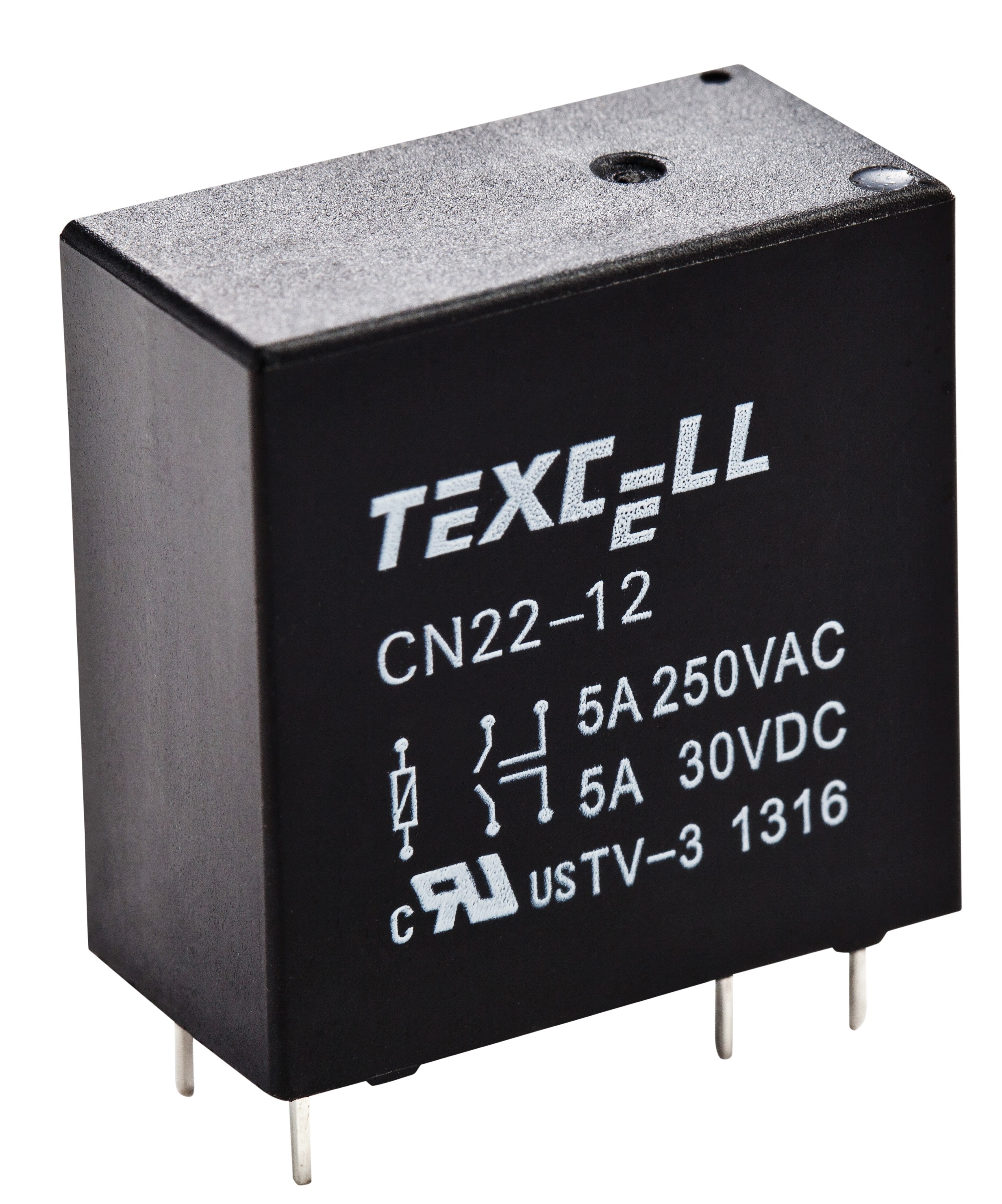

| CN |  |
 |
24.4 x 12.8 x 24.8 | 2A | 5A 250VAC / 30VDC TV-3 125VAC |
5~48VDC |  |
PDF Data sheet |

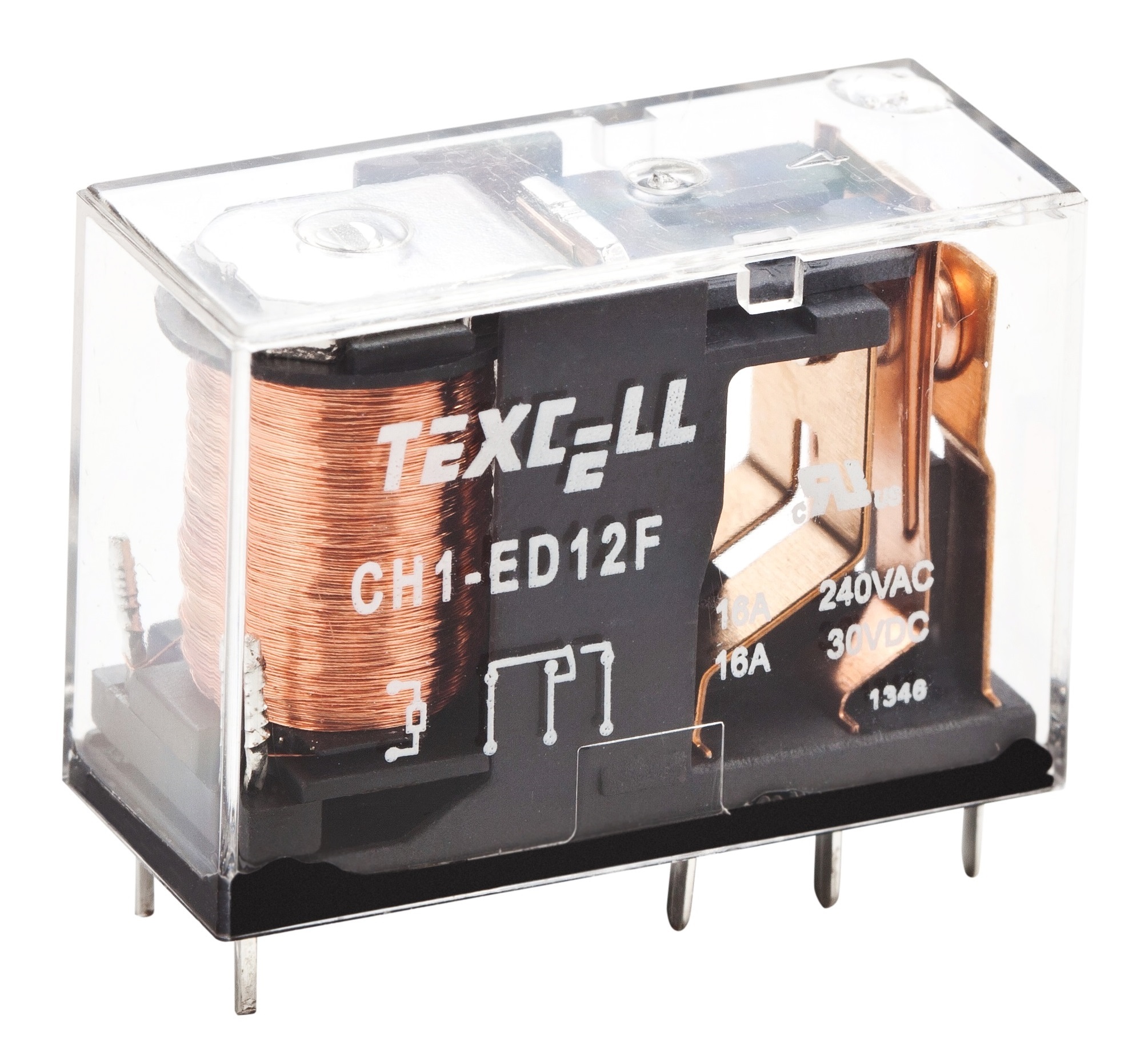

| CH |  |
 |
29.0 x 12.7 x 20.0 | 1A, 1C 2A, 2C |
16A 240VAC / 30VDC 5A 240VAC / 30VDC |
3~48VDC |  |
PDF Data sheet |

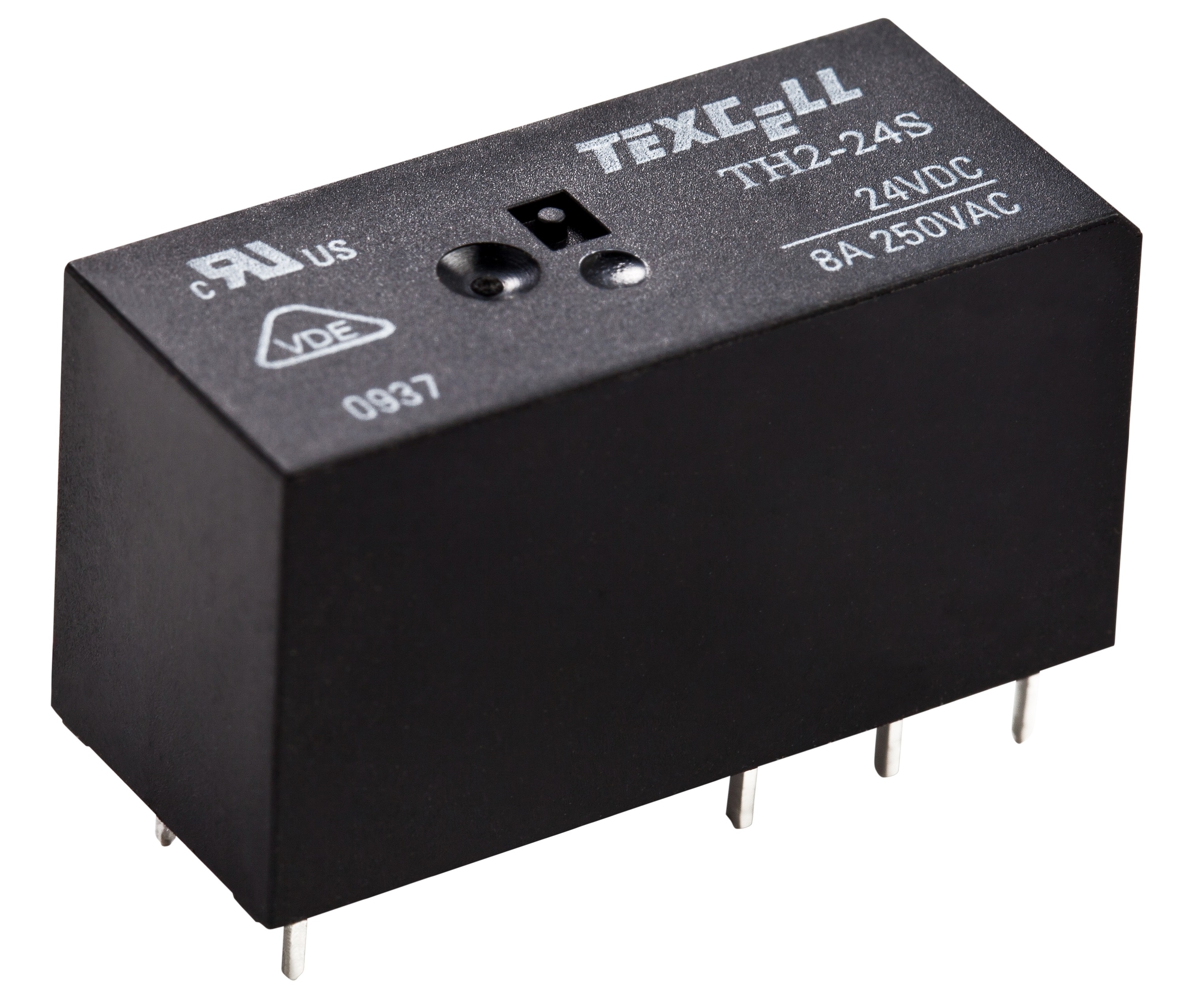

| TH |  |
 |
29.0 x 12.7 x 15.7 | 1A, 1B, 1C 2A, 2B, 2C |
16A 250VAC 8A 250VAC |
5~110VDC 24~230VAC |
 |
PDF Data sheet |

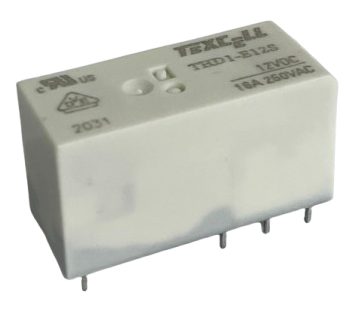

| THD |  |
 |
29.0 x 12.7 x 15.7 | 1A, 1C | 16A 250VAC | 5~48VDC |  |
PDF Data sheet |

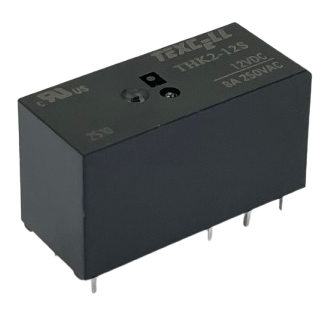

| THK |  |
 |
29.0 x 12.7 x 15.7 | 1A, 1C 2A, 2C |
16A 250VAC 8A 250VAC |
5~48VDC |  |
PDF Data sheet |

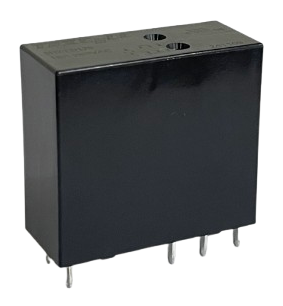

| SH |  |
 |
29.0 x 12.7 x 26.0 | 2A, 2C | 16A 250VAC | 3~110VDC |  |
PDF Data sheet |

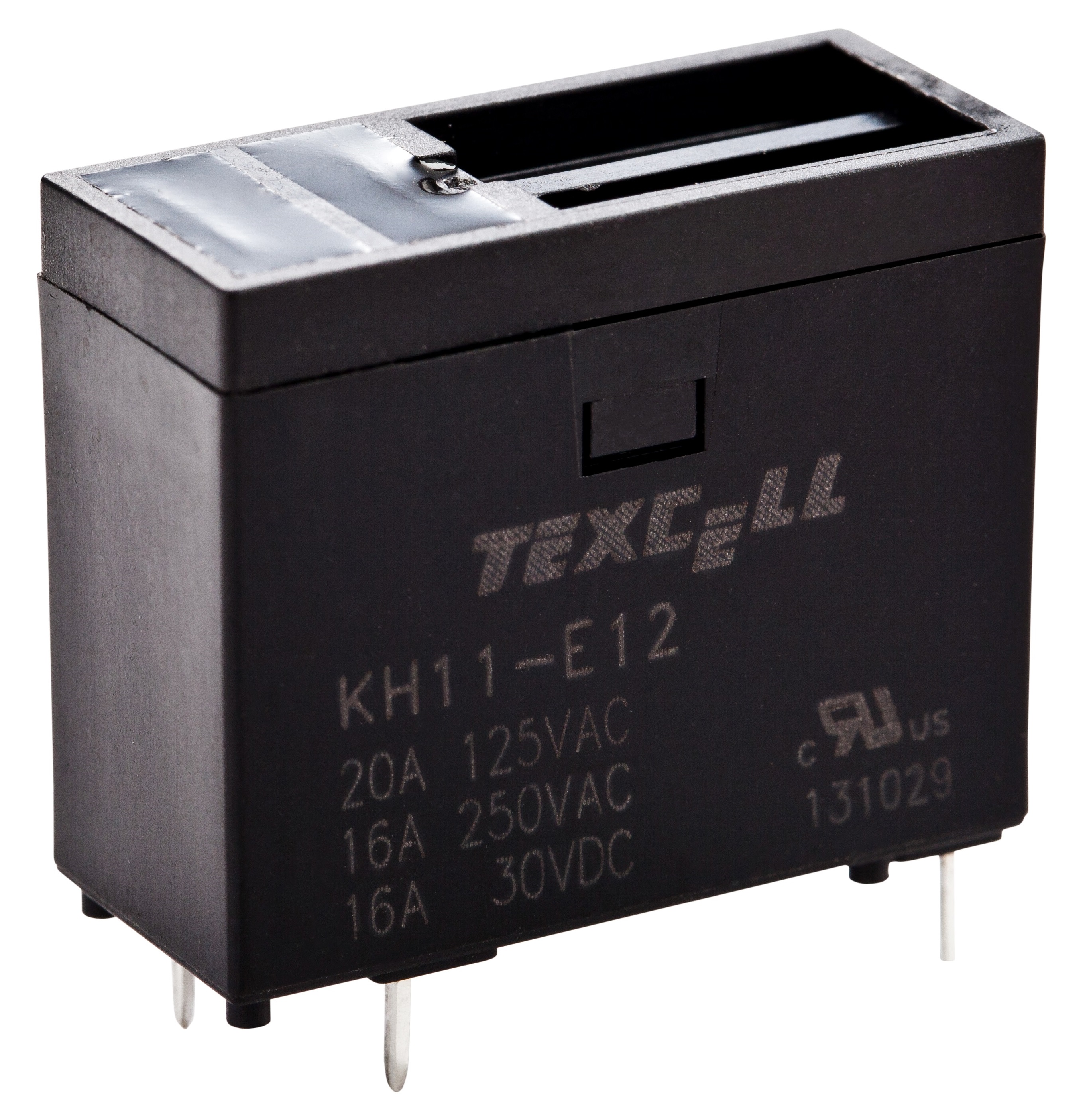

| KH |  |
 |
29.2 x 12.6 x 23.0 | 1A | 20A 250VAC | 5~48VDC |  |
PDF Data sheet |

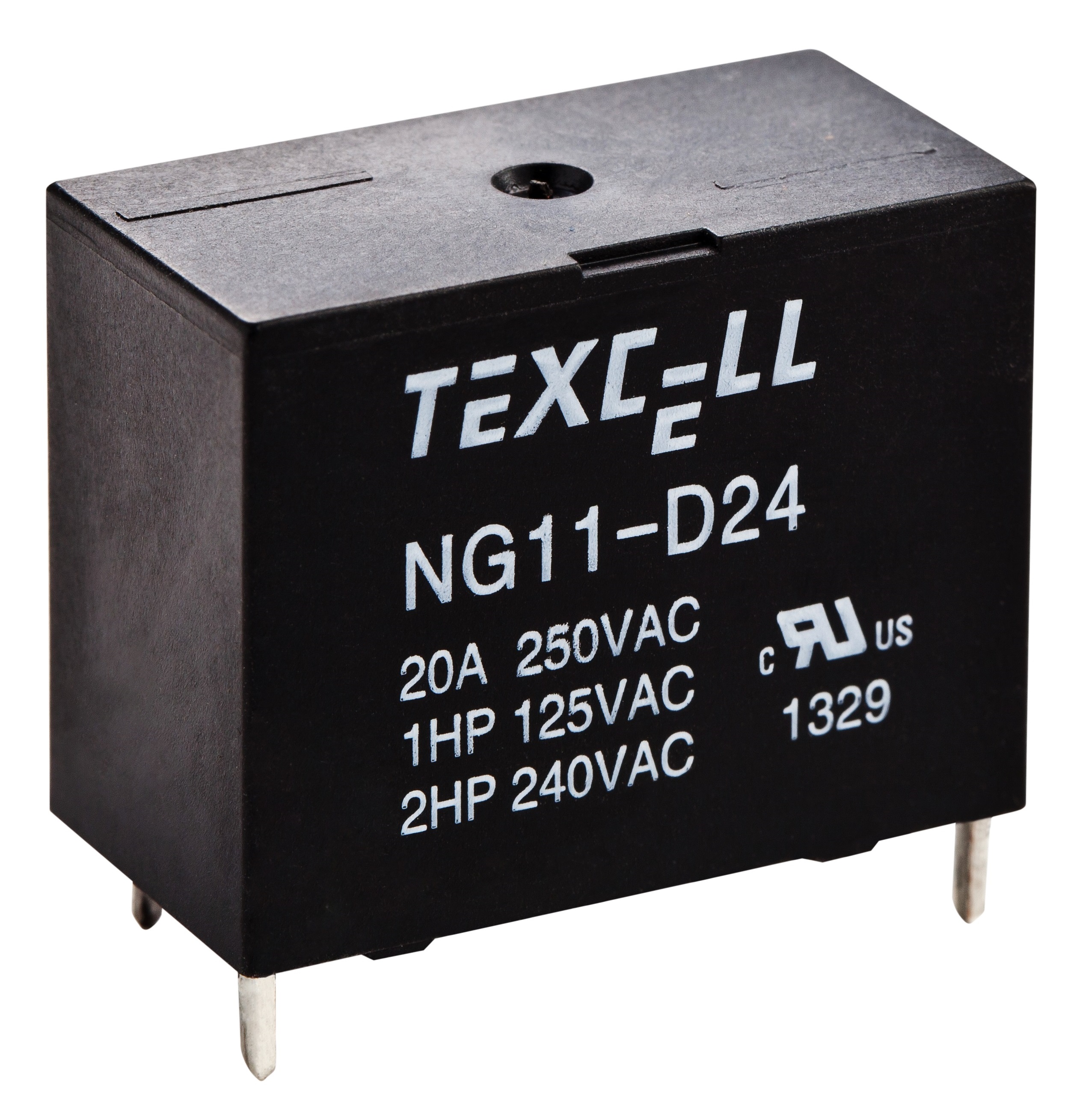

| NG |  |
 |
30.5 x 16.0 x 23.5 | 1A | 20A 250VAC 2HP 240VAC |
5~48VDC |  |
PDF Data sheet |

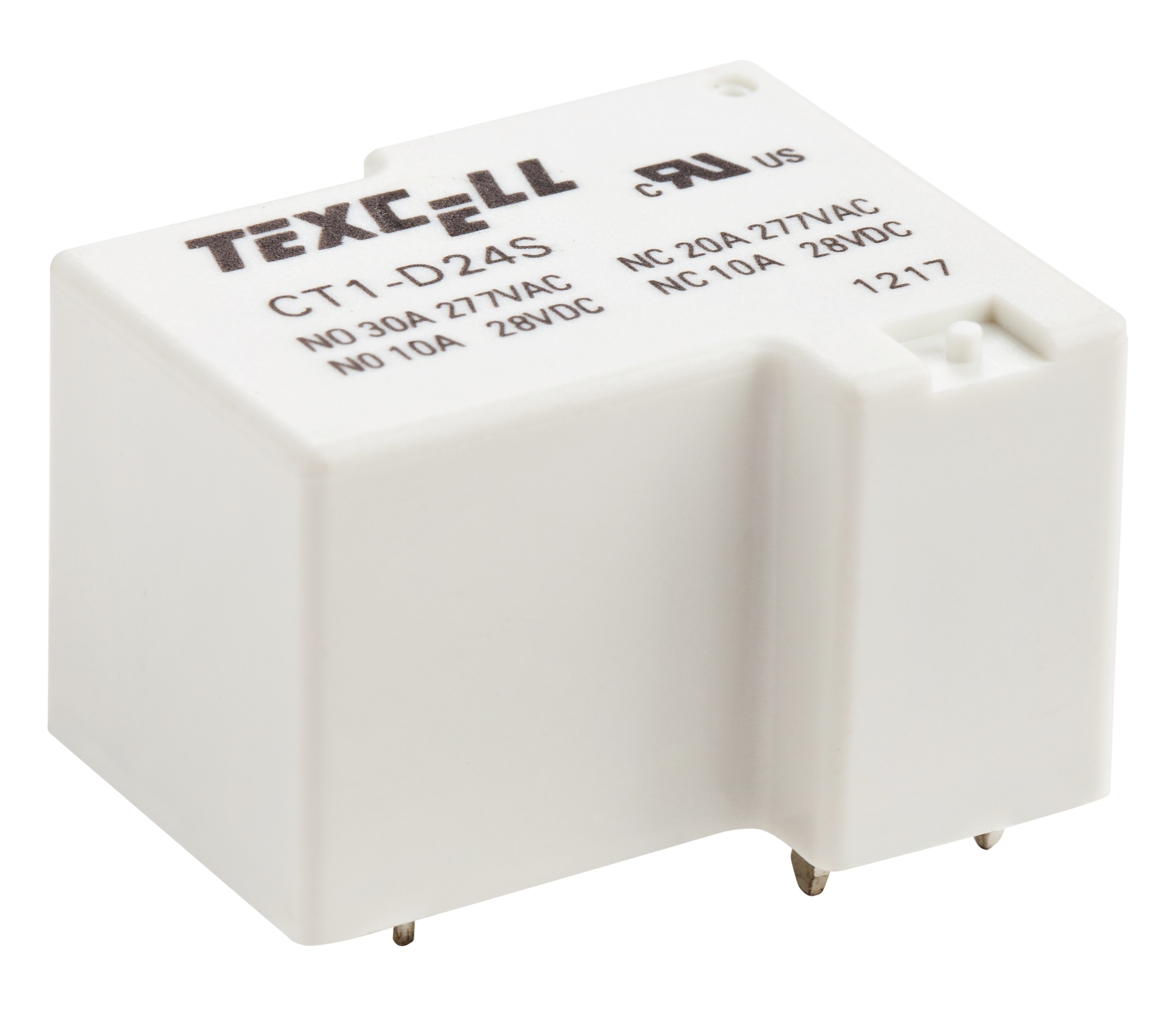

| CT |  |
 |
32.3 x 27.1 x 20.0 | 1A 1C - NO 1C - NC |
30A 240VAC / 20A 28VDC 20A 240VAC / 28VDC 10A 240VAC / 28VDC |
5~110VDC 12~277VAC |
 |
PDF Data sheet |

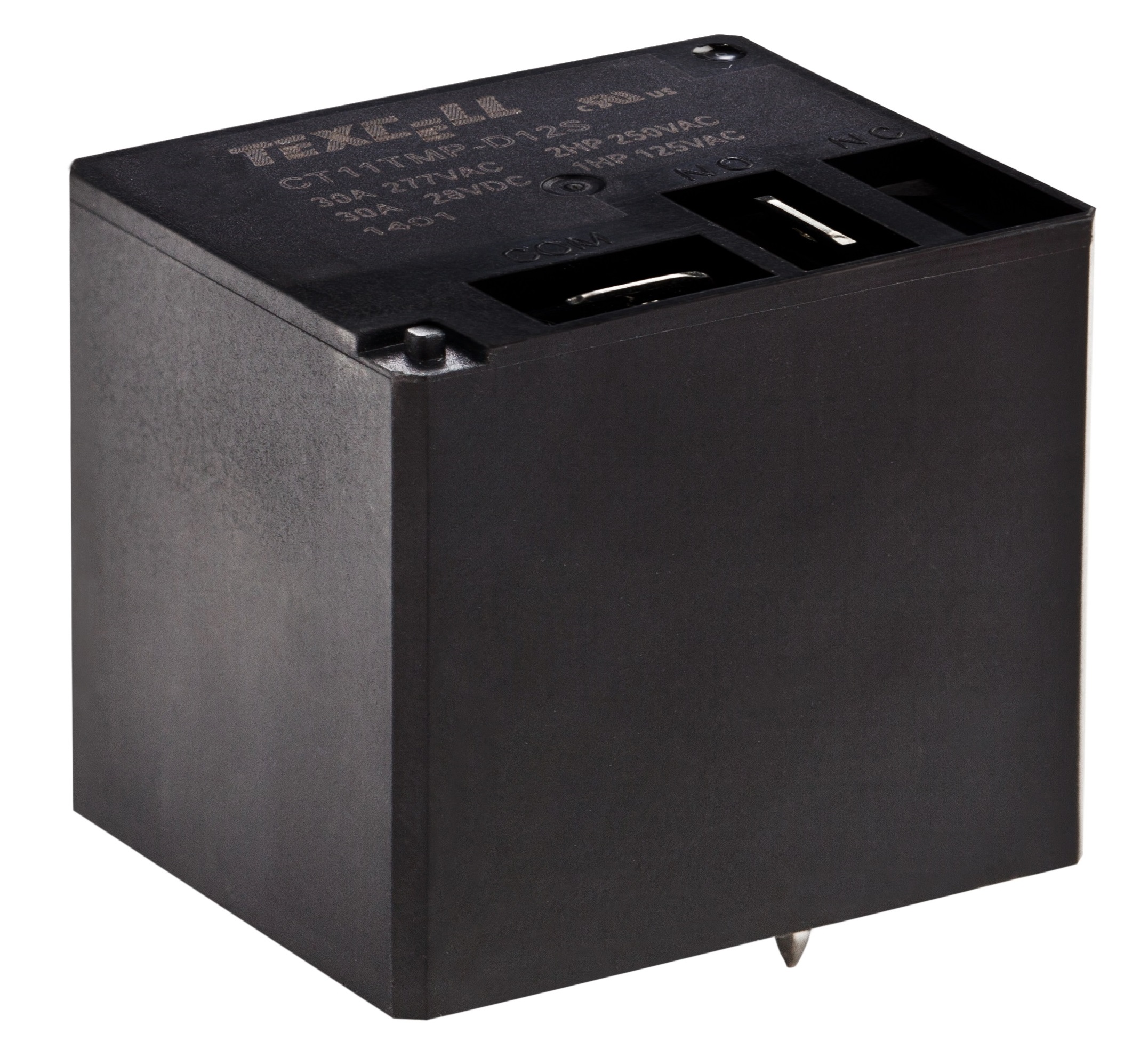

| CT-TMP |  |
 |
32.2 x 27.5 x 27.8 | 1A 1C - NO 1C - NC |
30A 240VAC / 20A 28VDC 20A 240VAC / 28VDC 10A 240VAC / 28VDC |
5~110VDC 12~277VAC |
 |
PDF Data sheet |

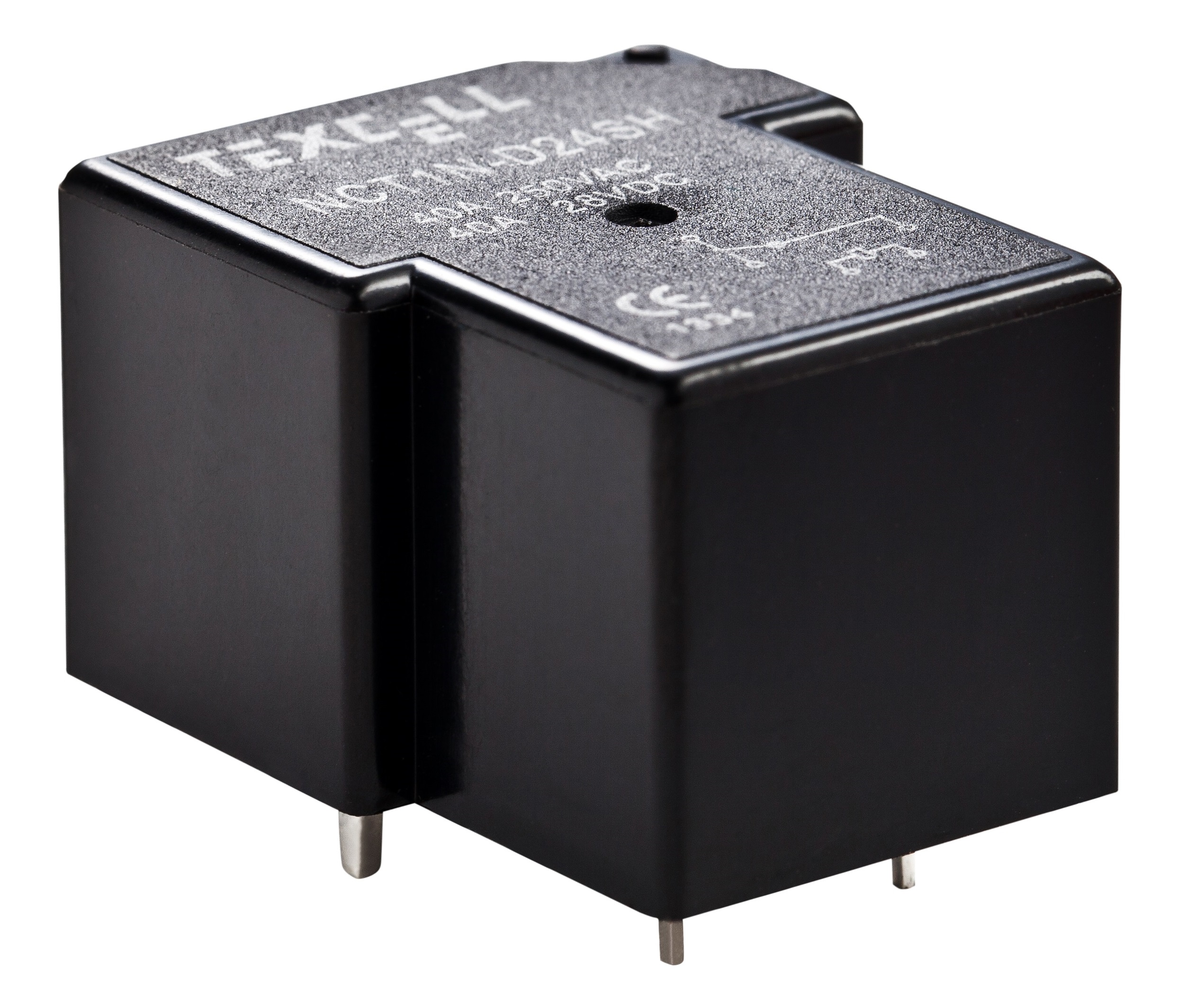

| NCT (UL) |  |
 |
32.0 x 27.5 x 19.8 | 1A 1C - NO 1C - NC |
40A 277VAC / 30VDC 40A 277VAC / 30VDC 30A 277VAC / 30VDC |
3~110VDC 12~240VAC |
 |
PDF Data sheet |
| NCT (TUV) |  |
 |
32.0 x 27.5 x 19.8 | 1A 1C - NO 1C - NC |
40A 240VAC / 28VDC 40A 240VAC / 28VDC 30A 240VAC / 28VDC |
6~48VDC |  |
PDF Data sheet |

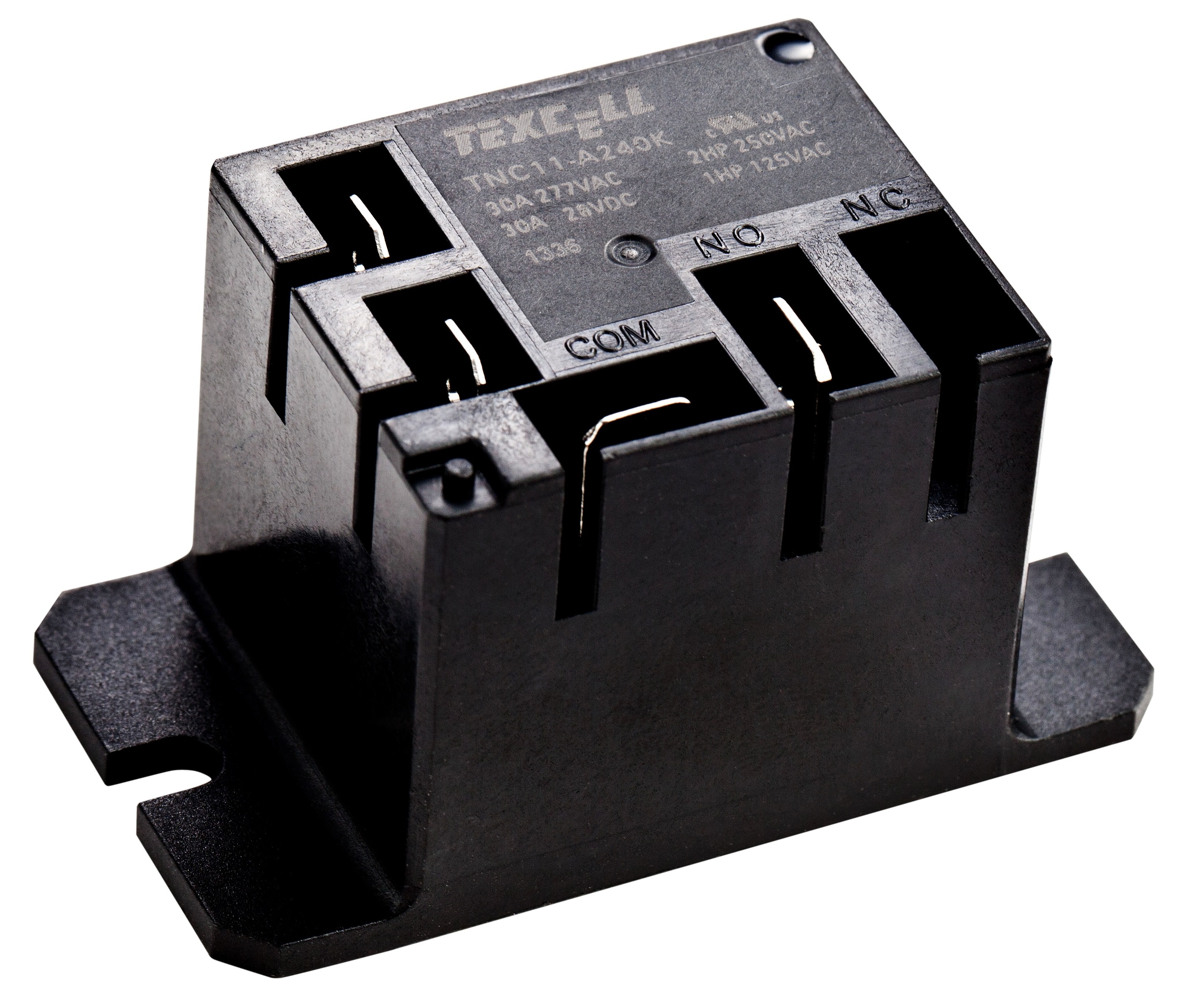

| TNC |  |
 |
50.0 x 27.2 x 27.8 | 1A 1C - NO 1C - NC |
30A 240VAC / 20A 28VDC 20A 240VAC / 28VDC 10A 240VAC /28VDC |
5~110VDC 12~277VAC |
 |
PDF Data sheet |

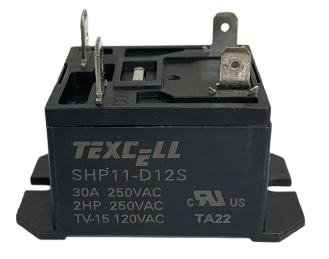

| SHP |  |
 |
35.2 x 32.2 x 24.0 | 1A | 30A 250VAC | 5~60VDC |  |
PDF Data sheet |
