| Model | Appearance | Layout (Bottom View) |
Dimension(mm) (L x W x H) |
Contact Arrangement |
Contact Ratings | Coil Voltage | Safety Approval | Data Sheet |
|---|---|---|---|---|---|---|---|---|
| NSL |  |
 |
20.5 x 10.2 x 15.7 | 1A | 10A 250VAC | 3~48VDC |  |
 PDF Data sheet |

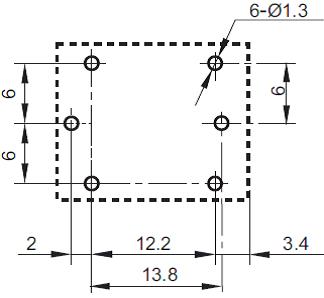

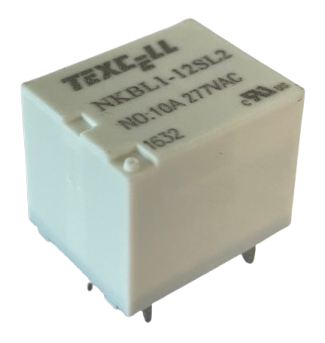

| NKBL |  |
 |
19.0 x 15.2 x 15.5 | 1A, 1C | 10A 277VAC / 30VDC | 3~48VDC |  |
PDF Data sheet |

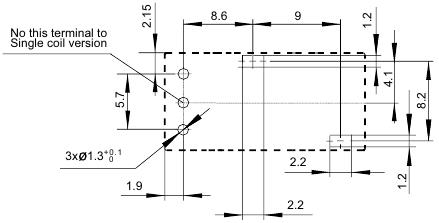

| LA |  |
 |
22 x 10 x 14 | 1A | 16A 277VAC | 3~24VDC |  |
PDF Data sheet |

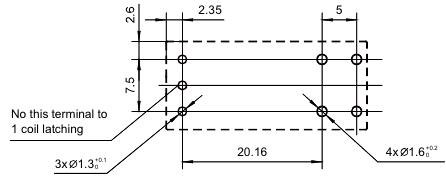

| LC |  |
 |
29.0 x 12.7 x 15.7 | 2A | 20A 277VAC | 3~48VDC |  |
PDF Data sheet |

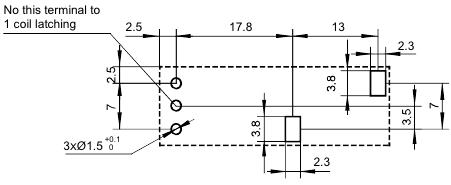

| LD |  |
 |
35 x 12 x 24 | 1A | 50A 277VAC | 3~48VDC |  |
PDF Data sheet |

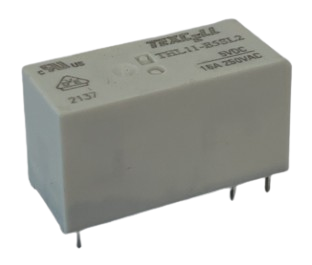

| THL |  |
 |
29.0 x 12.7 x 15.7 | 1A, 1C 2A, 2C |
16A 250VAC 8A 250VAC |
5~24VDC |  |
PDF Data sheet |
| THLS |  |
 |
29.0 x 12.7 x 15.7 | 1A | 16A 250VAC | 5~24VDC |  |
PDF Data sheet |

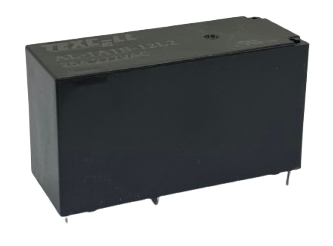

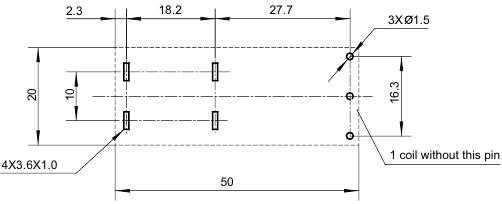

| AL |  |
 |
50 x 20 x 27 | 1A + 1B | 25A 277VAC | 5~48VDC |  |
PDF Data sheet |

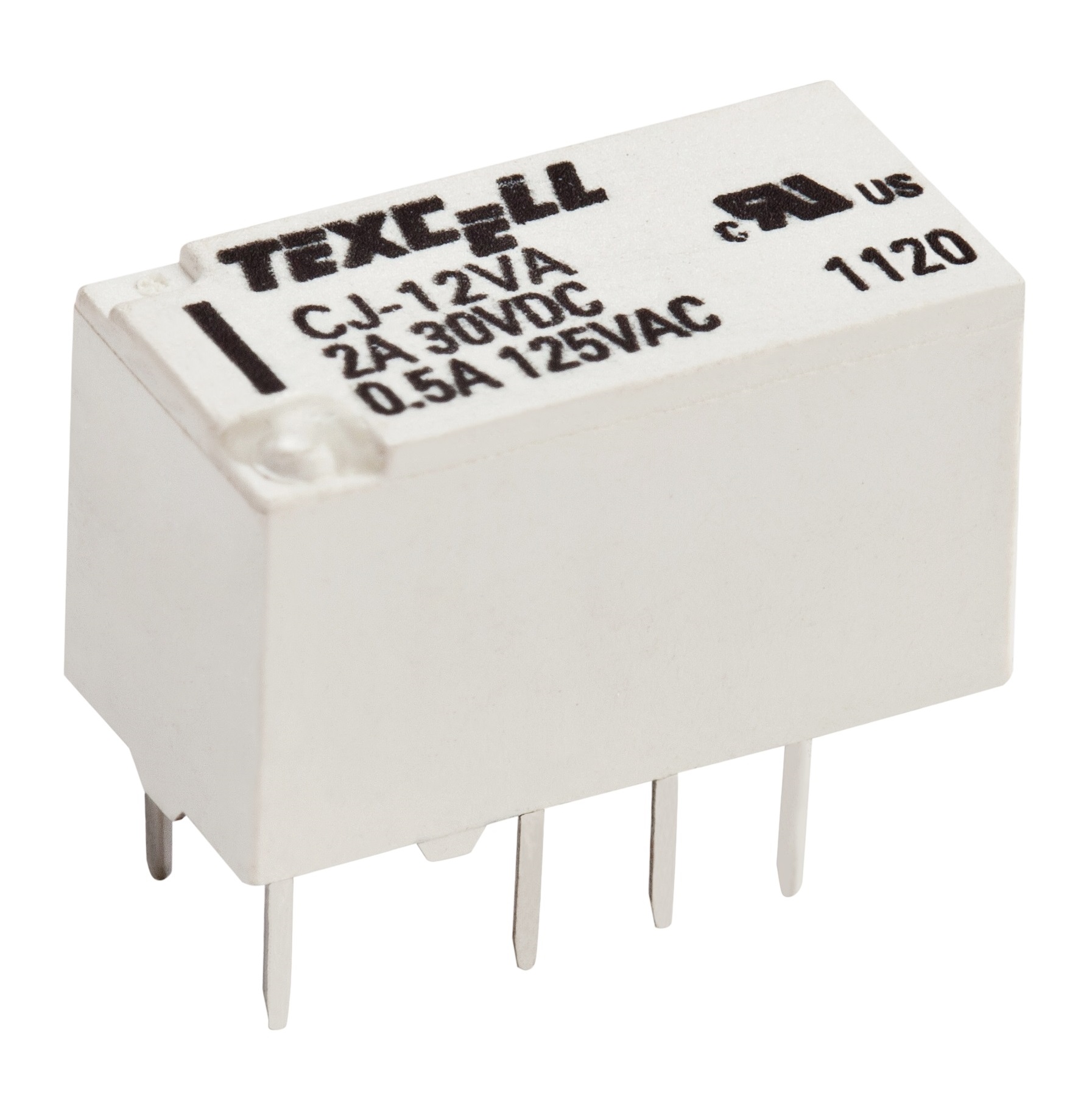

| CJ |  |
 |
15.0 x 7.5 x 9.0 | 2C | 0.5A 125VAC 2A 30VDC |
1.5~48VDC |  |
PDF Data sheet |

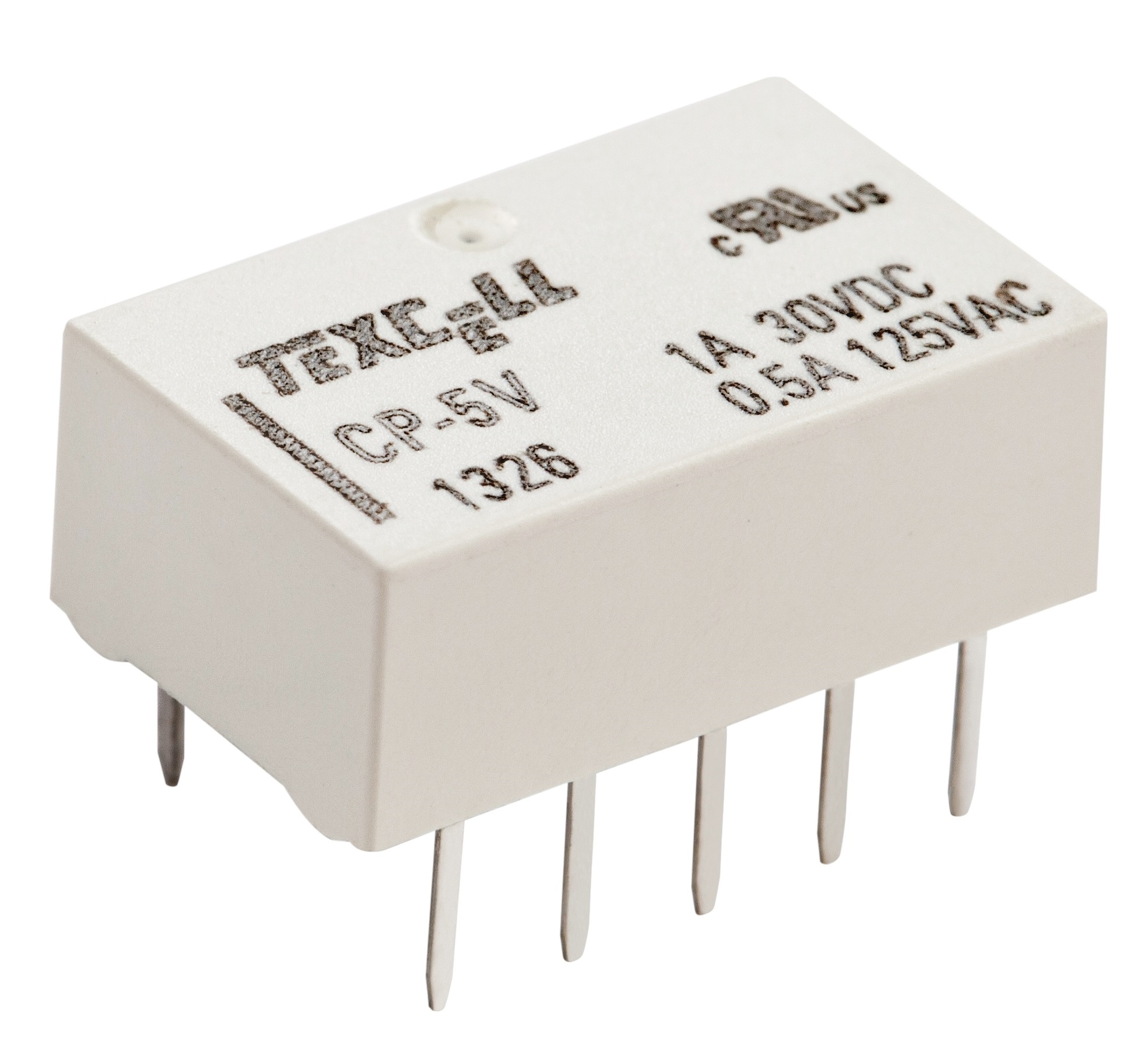

| CP |  |
 |
14.0 x 9.0 x 5.4 | 2C | 0.5A 125VAC 1A 30VDC |
1.5~24VDC |  |
PDF Data sheet |

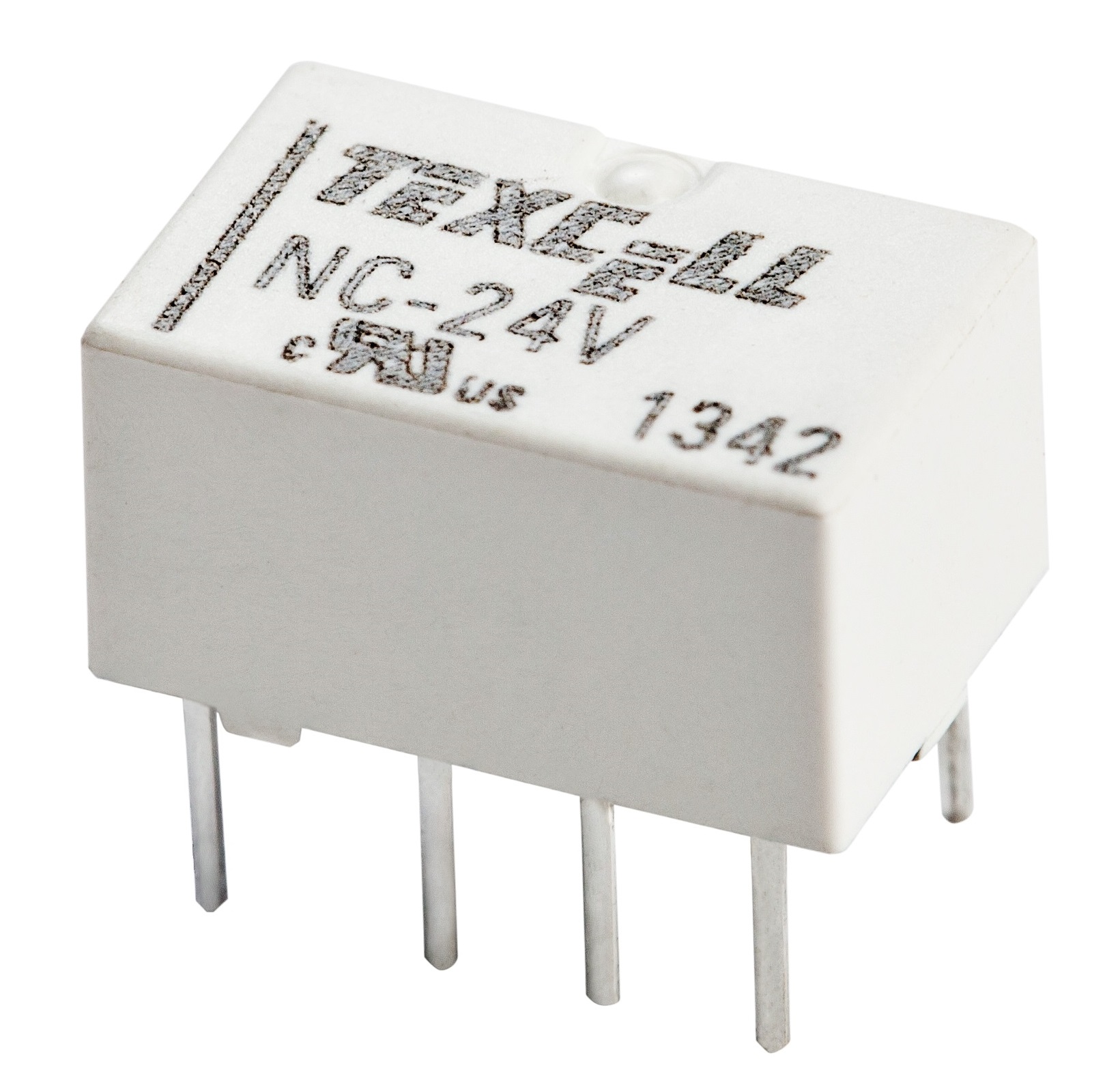

| NC |  |
 |
10.0 x 6.5 x 5.4 | 2C | 0.3A 125VAC 1A 30VDC |
1.5~24VDC |  |
PDF Data sheet |
| SA |  |
 |
10.6 x 5.7 x 9.0 | 2C | 1A 125VAC 2A 30VDC |
1.5~24VDC |  |
PDF Data sheet |
| SB |  |
 |
9.0 x 4.8 x 4.9 | 2C | 0.3A 125VAC 1A 30VDC |
1.5~24VDC |  |
PDF Data sheet |

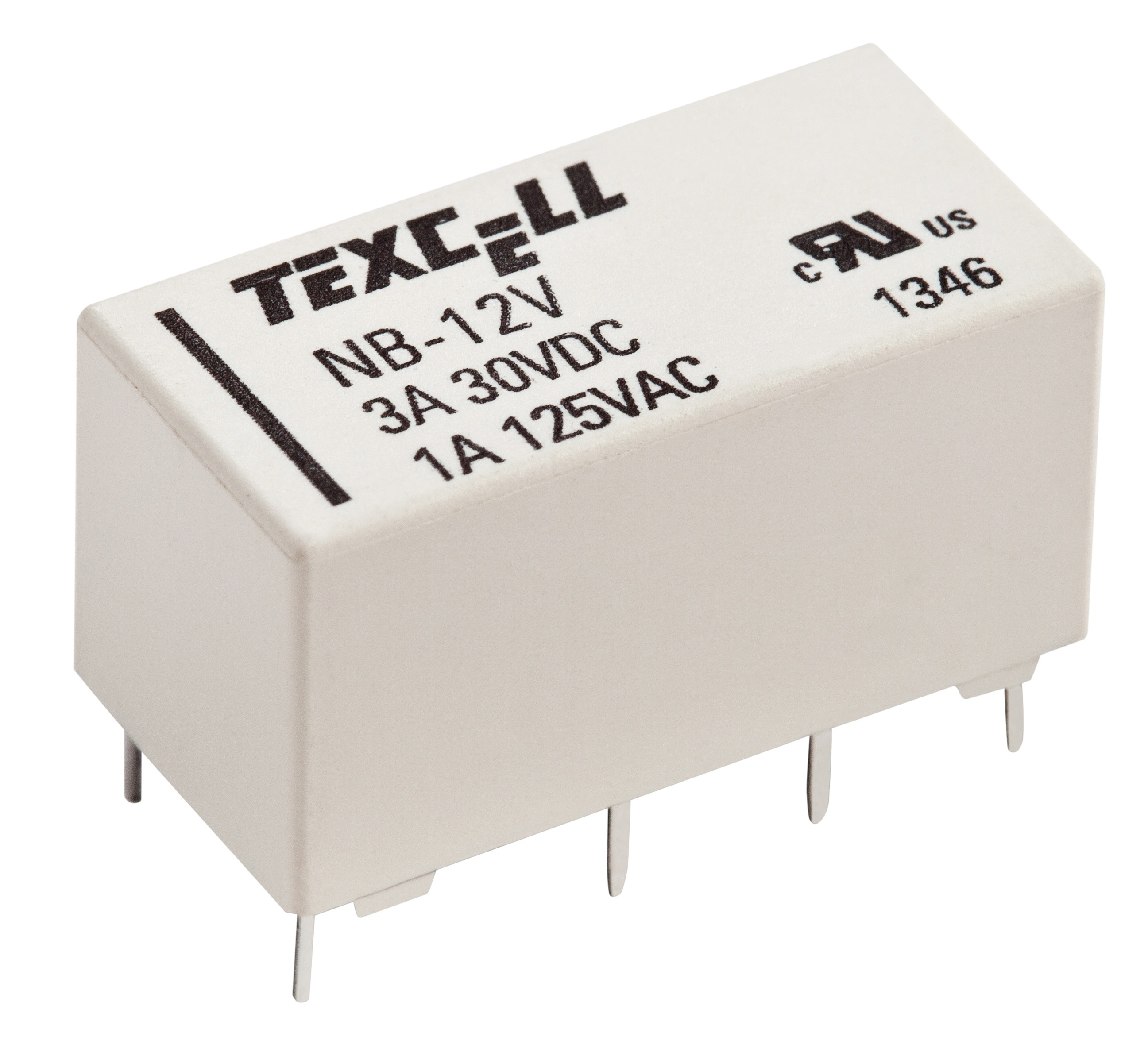

| NB |  |
 |
20.2 x 10.2 x 10.6 | 2C | 1A 125VAC 3A 30VDC |
3~48VDC |  |
PDF Data sheet |
